Performance Diagram
Spindelträgerkühlung
Spindelträgerkühlung
Performance Diagram
Ungekühlt
Ungekühlt
Dimensions

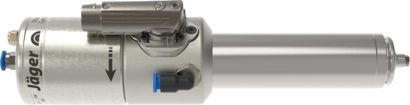

DentaDrive S 60-3 S21
Item no. 133BB023
Technical Specifications
| Stahlkugellager (Stück) | 3 |
| Lifetime lubricated | wartungsfrei |
| Frequency | 1000 Hz |
| Motor poles (pairs) | 1 |
| Rated Rotation Speed | 60.000 rpm |
| Rated Power (Pmax/5s) |
0,91 kW *
(0,65 kW **) |
| Rated Power (S6-60%) |
0,76 kW *
(0,52 kW **) |
| Rated Power (S1-100%) |
0,71 kW *
(0,38 kW **) |
| Voltage (Pmax/5s) |
51 V *
(45 V **) |
| Voltage (S6-60%) |
52 V *
(42 V **) |
| Voltage (S1-100%) |
48 V *
(40 V **) |
| Current (Pmax/5s) |
15 A *
(11,9 A **) |
| Current (S6-60%) |
13,1 A *
(9,6 A **) |
| Current (S1-100%) |
12,5 A *
(7,6 A **) |
| Housing | Edelstahl / Aluminium |
| Housing diameter | 33 mm |
| Cooling | Ungekühlt |
| Heat dissipation | über den Spindelträger |
| Housing temperature | <+ 45° C |
| Ambient temperature | + 10° C … + 45° C |
| Sealing Air | yes |
| Protection category | IP54 |
| Taper Cleaning | Optional accessories |
| ESD Protection | Optionales Zubehör |
| Tool Change | Pneumatischer Direktwechsel |
| Collet type |
5,1P-5° Optionales Zubehör |
| Clamping range | 4 mm |
| Direction of motion | Rechtslauf |
| Coupler plug | 9-pol (I-TEC) |
| Weight | 1,2 kg |
| Concentricity | <1 µ |
*) Spindelträgerkühlung **) Ungekühlt
