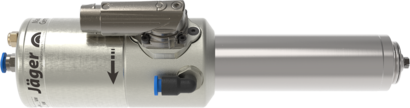

DentaDrive S 100 S21
Item no. 133EG023
Technical Specifications
| Hybrid ball bearing (pcs) | 2 |
| Lifetime lubricated | wartungsfrei |
| Frequency | 1667 Hz |
| Motor poles (pairs) | 1 |
| Rated Rotation Speed | 100.000 rpm |
| Rated Power (Pmax/5s) | 0,46 kW |
| Rated Power (S6-60%) | 0,3 kW |
| Rated Power (S1-100%) | 0,21 kW |
| Voltage (Pmax/5s) | 43 V |
| Voltage (S6-60%) | 42 V |
| Voltage (S1-100%) | 39 V |
| Current (Pmax/5s) | 9 A |
| Current (S6-60%) | 8 A |
| Current (S1-100%) | 7 A |
| Housing | Edelstahl / Aluminium |
| Housing diameter | 33 mm |
| Cooling | Druckluftgekühlt |
| Heat dissipation | über den Spindelträger |
| Housing temperature | <+ 55° C |
| Ambient temperature | + 10° C … + 45° C |
| Sealing Air | yes |
| Protection category | IP54 |
| Taper Cleaning | Optional accessories |
| ESD Protection | Optionales Zubehör |
| Tool Change | Pneumatischer Direktwechsel |
| Collet type |
5,1P-5° Optionales Zubehör |
| Clamping range | 3,5 mm (1/8“) |
| Direction of motion | Rechtslauf |
| Coupler plug | 9-pol (I-TEC) |
| Weight | 1,2 kg |
| Concentricity | <1 µ |
