Performance Diagram
Spindelträgerkühlung
Spindelträgerkühlung
Performance Diagram
Druckluftgekühlt
Druckluftgekühlt
Dimensions

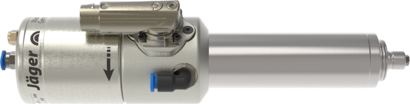

DentaDrive 100V-3 S21
Item no. 153FH023
Technical Specifications
| Hybrid ball bearing (pcs) | 3 |
| Lifetime lubricated | wartungsfrei |
| Frequency | 1667 Hz |
| Motor poles (pairs) | 1 |
| Rated Rotation Speed | 100.000 rpm |
| Rated Power (Pmax/5s) |
0,32 kW *
(0,25 kW **) |
| Rated Power (S6-60%) |
0,31 kW *
(0,23 kW **) |
| Rated Power (S1-100%) |
0,3 kW *
(0,2 kW **) |
| Voltage (Pmax/5s) |
34 V *
(33 V **) |
| Voltage (S6-60%) |
34 V *
(33 V **) |
| Voltage (S1-100%) |
34 V *
(33 V **) |
| Current (Pmax/5s) |
10 A *
(8,2 A **) |
| Current (S6-60%) |
9,8 A *
(7,7 A **) |
| Current (S1-100%) |
9,5 A *
(6,9 A **) |
| Housing | Edelstahl / Aluminium |
| Housing diameter | 33 mm |
| Cooling | Druckluftgekühlt |
| Heat dissipation | über das Gehäuse |
| Housing temperature | <+ 50° C |
| Ambient temperature | + 10° C … + 45° C |
| Sealing Air | yes |
| Protection category | IP54 |
| Taper Cleaning | Optional accessories |
| ESD Protection | Optionales Zubehör |
| Tool Change | Pneumatischer Direktwechsel |
| Collet type |
5,1P-5° Optionales Zubehör |
| Clamping range | 3,5 mm (1/8“) |
| Direction of motion | Rechtslauf |
| Coupler plug | 9-pol (I-TEC) |
| Weight | 1,2 kg |
| Concentricity | <1 µ |
*) Spindelträgerkühlung **) Druckluftgekühlt
