Performance Diagram
Druckluftgekühlt
Druckluftgekühlt
Performance Diagram
Spindelträgerkühlung
Spindelträgerkühlung
Dimensions

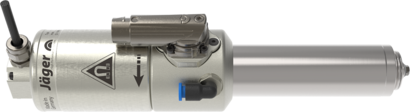

DentaDrive 100V-3 S21
Item no. 153FK021
Technical Specifications
| Hybrid ball bearing (pcs) | 3 |
| Lifetime lubricated | wartungsfrei |
| Frequency | 1667 Hz |
| Motor poles (pairs) | 1 |
| Rated Rotation Speed | 100.000 rpm |
| Rated Power (Pmax/5s) |
0,42 kW *
(0,75 kW **) |
| Rated Power (S6-60%) |
0,33 kW *
(0,65 kW **) |
| Rated Power (S1-100%) |
0,22 kW *
(0,51 kW **) |
| Voltage (Pmax/5s) |
36 V *
(71 V **) |
| Voltage (S6-60%) |
36 V *
(71 V **) |
| Voltage (S1-100%) |
36 V *
(66 V **) |
| Current (Pmax/5s) |
13,7 A *
(13,6 A **) |
| Current (S6-60%) |
9,6 A *
(11 A **) |
| Current (S1-100%) |
7,5 A *
(10,2 A **) |
| Motor protection |
PTC 100°C oder Pt1000 Optionales Zubehör |
| Housing | Edelstahl / Aluminium |
| Housing diameter | 33 mm |
| Cooling | Druckluftgekühlt |
| Heat dissipation | über das Gehäuse |
| Housing temperature | <+ 50° C |
| Ambient temperature | + 10° C … + 45° C |
| Sealing Air | yes |
| Protection category | IP54 |
| Taper Cleaning | Optional accessories |
| ESD Protection | Optionales Zubehör |
| Tool Change | Elektrischer Direktwechsel |
| Collet type |
5,1P-5° Optionales Zubehör |
| Clamping range | 3,5 mm (1/8“) |
| Direction of motion | Rechtslauf |
| Coupler plug | 9-pol (I-TEC) |
| Weight | 1,5 kg |
| Concentricity | <1 µ |
*) Druckluftgekühlt **) Spindelträgerkühlung
