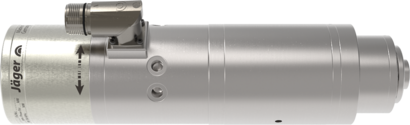

Z80-H445.06 S5W2/2

Item no. 10404073
aj.product.detail.image_altZ80-H445.06 S5W2/2
aj.product.detail.image_diagram_power_altZ80-H445.06 S5W2/2
Performance Diagram
Liquid cooled
aj.product.detail.image_dimensions_altZ80-H445.06 S5W2/2
Dimensions

Technical Specifications

Hybrid ball bearing (pcs) 3
Lifetime lubricated maintenance free
Motor technology 3-phase asynchronous drive
(no brushes or sensors)
Frequency 1500 Hz
Motor poles (pairs) 2
Rated Rotation Speed 45,000 rpm
Rated Power (Pmax/5s) 4.6 kW
Rated Power (S6-60%) 3.1 kW
Rated Power (S1-100%) 2.6 kW
Voltage (Pmax/5s) 320 V
Voltage (S6-60%) 280 V
Voltage (S1-100%) 275 V
Current (Pmax/5s) 16 A
Current (S6-60%) 11 A
Current (S1-100%) 10 A
Motor protection PTC 160°C
Housing Stainless steel
Housing diameter 80 / 62 mm
Cooling Liquid cooled
Ambient temperature + 10°C … + 45°C
Sealing Air yes
Protection category IP54
Taper Cleaning yes
Tool Change Pneumatic taper change
Tool Holder HSK-E 25
Clamping status monitoring inductive
Clamping range 10 mm
Direction of motion Clockwise and anticlockwise
Coupler plug 9-pin (SpeedTEC)
Weight 6 kg
Concentricity < 1 µ
Axial run-out < 1 µ

Optional accessories

Spindle holder

22890251

Spindle holder

22895850
