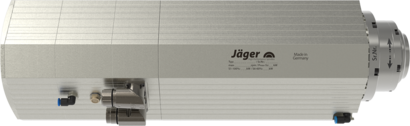

Chopper 6500 HSK

Item no. 11507001-01
aj.product.detail.image_altChopper 6500 HSK
aj.product.detail.image_diagram_power_altChopper 6500 HSK
Performance Diagram
Fan cooled
aj.product.detail.image_dimensions_altChopper 6500 HSK
Dimensions

Technical Specifications

Hybrid ball bearing (pcs) 4
Lifetime lubricated maintenance free
Motor technology 3-phase asynchronous drive
(no brushes or sensors)
Frequency 800 Hz
Motor poles (pairs) 2
Rated Rotation Speed 24,000 rpm
Rated Power (Pmax/5s) 10.5 kW
Rated Power (S6-60%) 8 kW
Rated Power (S1-100%) 6.5 kW
Voltage (Pmax/5s) 363 V
Voltage (S6-60%) 347 V
Voltage (S1-100%) 330 V
Current (Pmax/5s) 22 A
Current (S6-60%) 20 A
Current (S1-100%) 13 A
Speed Sensor Differential magneto resistor
Number of signals = 6
Motor protection PTC 130°C
Housing Aluminium
Housing diameter 142 mm
T-slots DIN 650-10
Cooling Fan-cooled
(1 electric fan)
Heat dissipation Via the housing
Housing temperature < + 75°C
Ambient temperature + 10°C … + 45°C
Sealing Air yes
Protection category IP54
Taper Cleaning yes
Tool Change Pneumatic taper change
Tool Holder HSK-F 63
Clamping status monitoring inductive
Clamping range 20 mm
Direction of motion Clockwise and anticlockwise
Coupler plug 9-pin (SpeedTEC)
(motor phases)
12-pin
(sensors)
Weight 27 kg
Concentricity < 2 µ
Axial run-out < 2 µ
